Y04000066 Range Bake Unit Heating Oven Element for Maytag Magic Chef

Description

Backer Industries Part Number CH6388

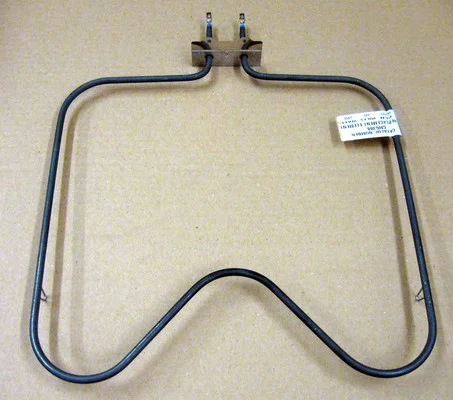

Range Oven Bake Unit Heating Element

The dimensions are:  16″ from the front to the mounting bracket 16″ Wide 2 5/8″ from the mounting bracket to the end of terminal, rod is bent slightly down Terminals are bent at a 90 degree angle Mounting holes measure 1-3/4″ apart center to center

Rated 2400 Watts at 240 Volts

Replacement for numbers 1938318, 1938325, 1938370, 551119, 74004073, 7406P013-60, 7406P075-60, 7406P424-60, 790208, W10310269, Y04000047, YE0100105199, Y04000066, AP4283357, and PS1754668

Designed to fit specific manufactured Maytag range makes and models including Magic Chef
