Description
Premier Component Part number PCPICM255C
Open board, dual function fan delay timer to control circulating fan in A/C, heat pump and forced air systems; high power, relay output

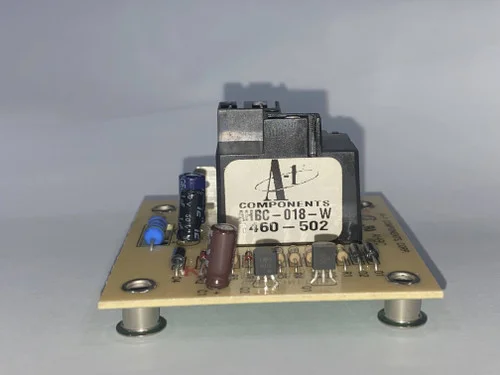

Designed as a Replacement for: Bard 8201-056, Snyder General: 1395336, Watsco: 5893, Rheem: 42-22515-01, 42-22515-02, 42-2215-03, ICM: ICM255, A1: 5893, AHBC-018-W, Mars: 32574
Features:
- Low cost open board design
- High power, relay output
- Dual function fan delay timer
- Controls the circulating fan in heat pump, A/C and forced air systems
- OFF delay purges ducts of residual air
- ON delay allows air to reach the proper comfort level prior to energizing the fan
Specifications:
Input:
- Voltage – 18-30 VAC
Output:
- N.O.: 20 amps @ 240 VAC-
- N.C.: 20 amps @ 240 VAC
Fixed Time Delays:
- ON: 1 second- OFF: 60 seconds
