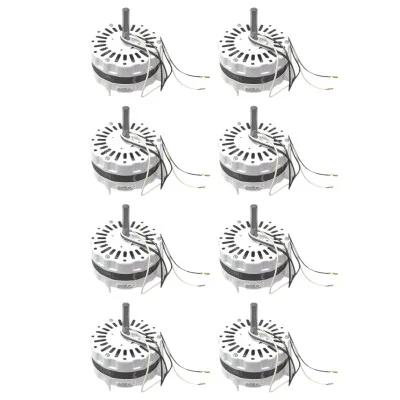

Attic Motor 8 Pack

Description

Special 8 Pack of Attic Motors

Each Motor Will Be individually Boxed

Motor Specifications:

• 5″ diameter
• 2-3/4 thick
• Shaft diameter is 1/2″ x 2 5/8″ long
• 120 volt 2 wire
• Single speed motor
• 1100 RPM’s
• 4.3 amps – Safe Amp Range within which the Motor Can Operate in the Application is 3.3 – 4.75
• 1/10th HP
• 22″ Long Wire Leads
• Rotation is clockwise viewing shaft end
• Mounts either as a belly band strap around the motor or with 3 studs out of the back of the motor spaced 4″ apart triangularly.

Replacement for Broan Numbers:

• F0812B3146
• F0516B2516
• f0510b2705
• F05102944
• 97009317
• 99080267
• 99080239
• E146880
• 909313
